Product Specifications
Frame Material: 12 gauge (2.75 mm) galvanneal steel with off-white primer
Door Material: 1/4″ (6.35 mm) Aluminum tread plate with mill finish and 14 gauge (1.99mm) galvanneal steel frame and liner with off-white primer
Insulation: High-temperature ceramic fiber insulation
Hinge: Continuous stainless steel hinge

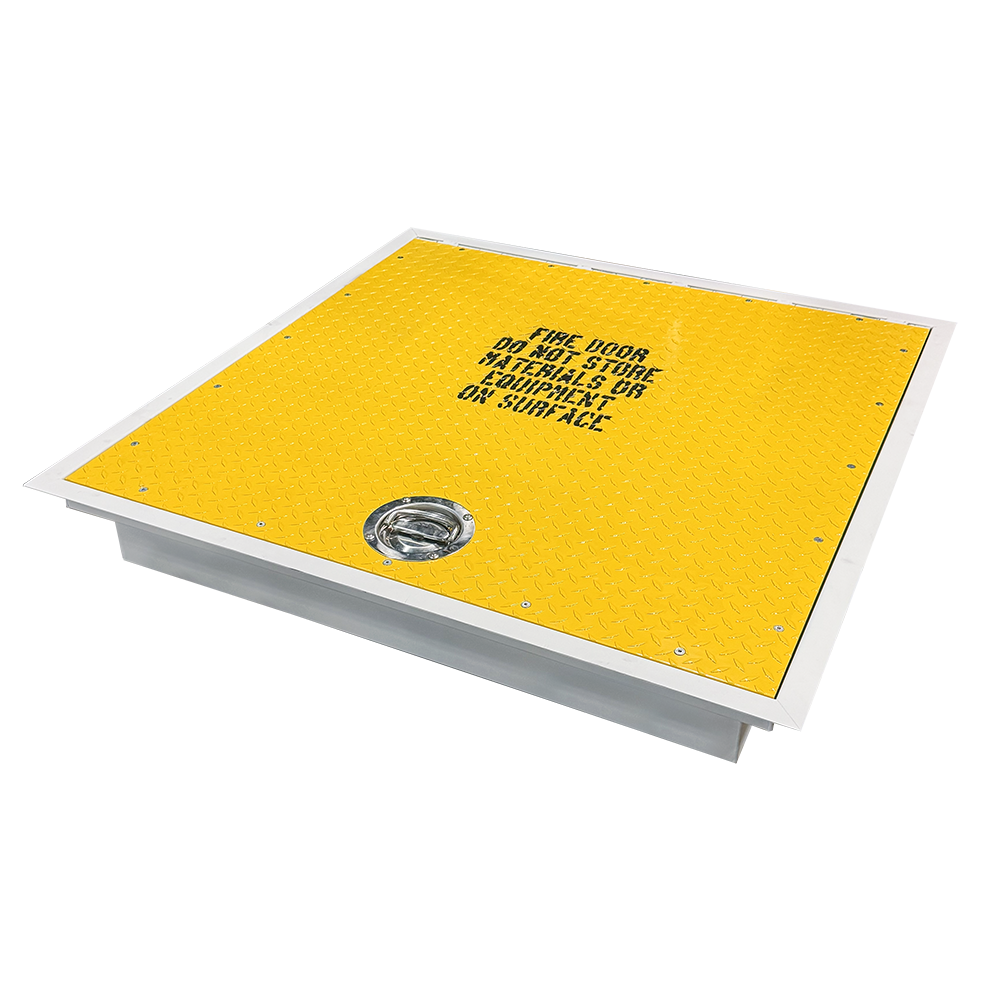

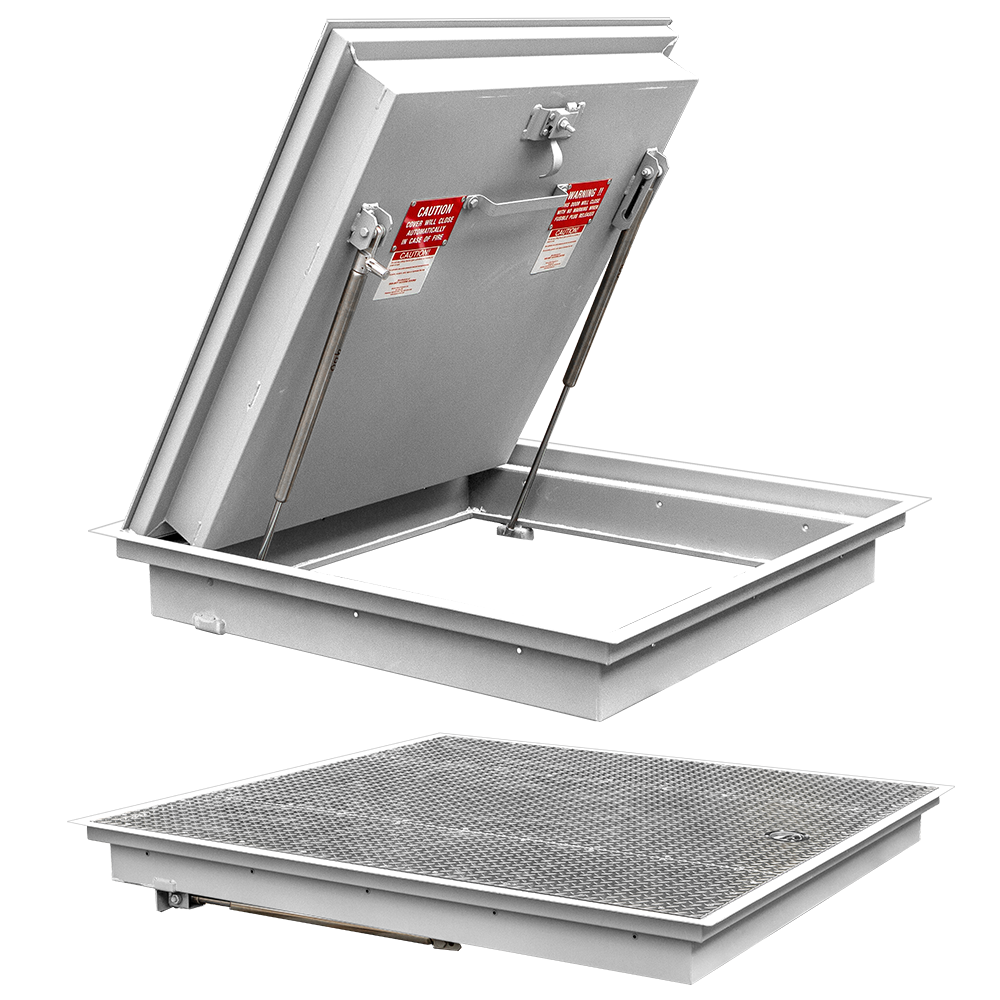

Latch: Stainless steel slam latch operated by a stainless steel recessed turn handle topside.

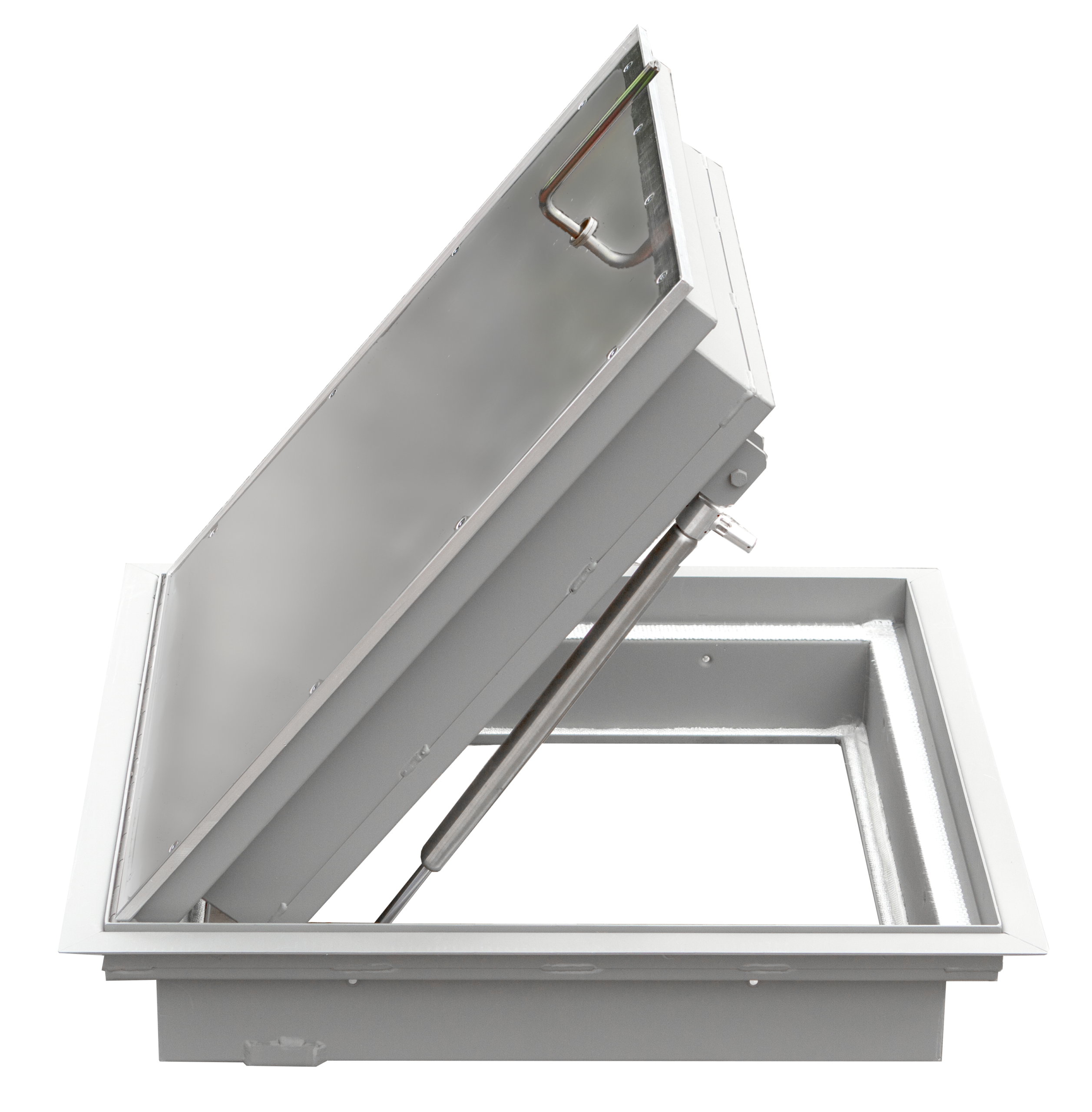

Spring/Cylinder: 316 stainless steel gas spring cylinders
Self Closing Mechanism: 165 degrees Fahrenheit (74 degrees Celsius) fusible link melts during fire automatically closing door without warning by releasing gas in cylinders. Not available on sizes larger than 42″ (1067 mm) x 60″ (1524 mm).
Installation Kit: Includes anchor straps for installing into concrete and screws for wood frame installations
Live Load: 150 lbs/sq ft (700 kg/sq metre)
CERTIFICATIONS:
FIRE-RATING:
QAI Laboratories listed and labeled for 1, 2 and 3 hours for horizontal fire door assemblies.
QAI Cert. No. F482-1 – Maxam Metal Products Ltd. – QAI
Testing Standards: NFPA 288 and CAN/ULC S101
