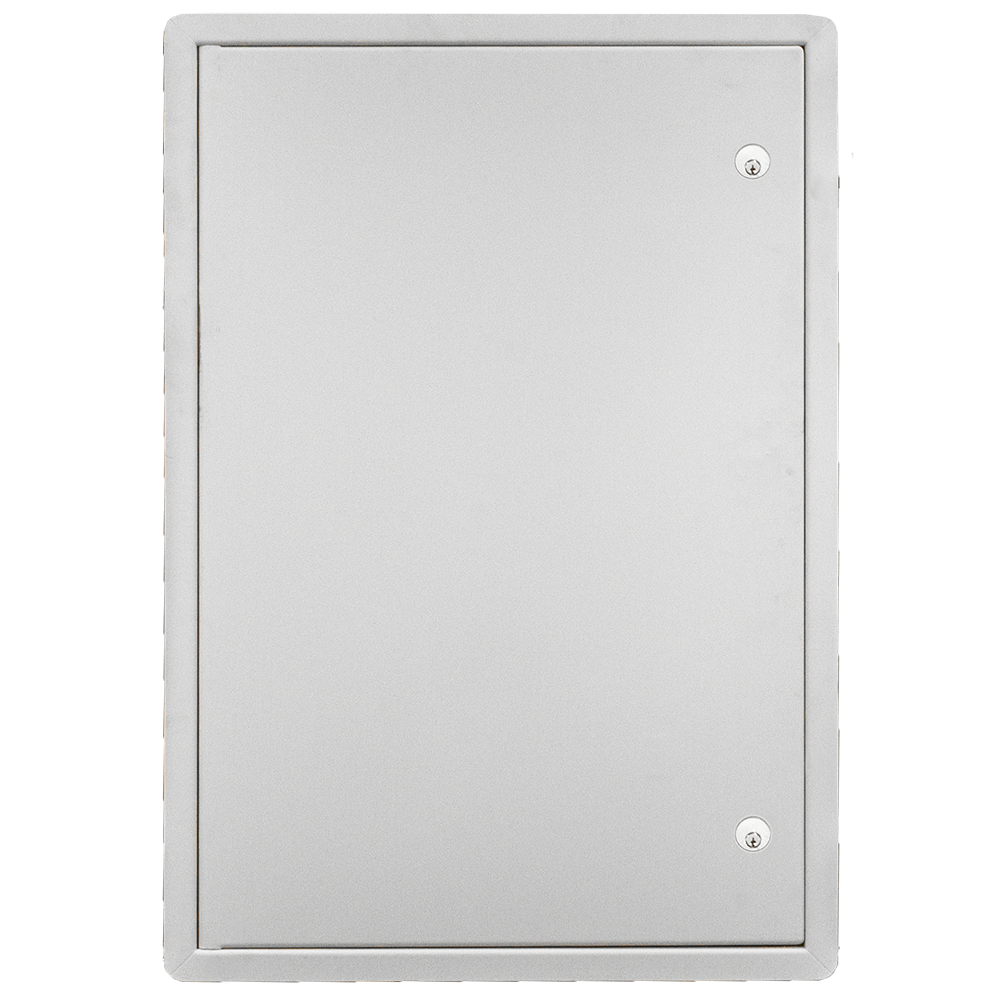

Product Specifications
Frame Material: 12 gauge (2.75 mm) galvanneal steel
Flange: Exposed flange width 1-1/4″ (32 mm)
Door Material: 10 gauge (3.4 mm) galvanneal steel
Finish: Off-white prime coat

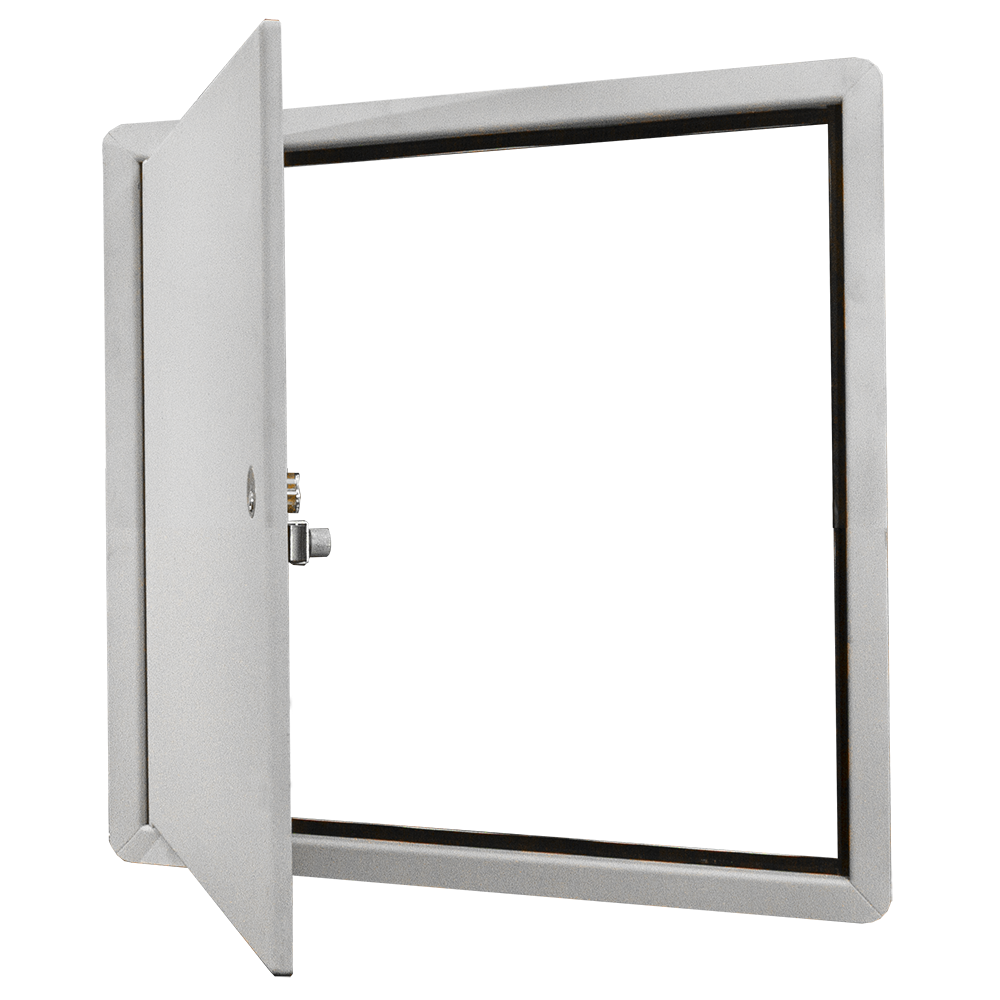

Hinge: Concealed continuous rod hinge
Latch: 1-⅛” Mortise prep complete with mortise cylinder, optional security lock
Gasket: 3-sided application, flat neoprene gasket 1/8″ x 1/2″
Safety Cable: 6″ (152 mm) long safety cable with hardware provided
DISCLAIMER: This access panel is designed to decrease the likelihood that it may be used as an apparatus for ligature. It is not a replacement for medical staff who are trained in the management and supervision of persons who may be at risk of suicide.
